Security Video Camera BNC 5MP

Holiday & Order Processing Notice

We're on holiday until 4. November. All orders and support enquiries received during this period will be processed & shipped-out in-order after returning from Holiday.

Security Video Camera BNC 5MP
Security Video Camera BNC 5MP
Security Video Camera BNC 5MP
Security Video Camera BNC 5MP
Security Video Camera BNC 5MP
Security Video Camera BNC 5MP
Security Video Camera BNC 5MP
Security Video Camera BNC 5MP
Security Video Camera BNC 5MP
Security Video Camera BNC 5MP
Security Video Camera BNC 5MP
  • Stock: In Stock
  • Model: 5MP-BNC-B5200M

EU VAT regulation (since 1.7.2021)

As of 01.07.2021, in B2C distance selling (transactions with end consumers), the previously applicable VAT delivery thresholds in the EU will be abolished and tax amounts will be owed directly in the country of delivery.

The so-called "distance selling regulation" will then apply.

From this point on, cross-border deliveries of goods to non-businesses will be taxable in the destination member state, and the corresponding amount of VAT will be payable there.

This means, for example, that as of 1.7.21, 21% VAT will be shown on invoices for deliveries to Belgium, and 25% VAT will be shown on invoices for deliveries to Sweden. The recipient in Sweden therefore no longer benefits from the 22% VAT rate in Slovenia.

Shipments outside the EU

Shipments to outside the EU are 0% VAT and remain VAT-free. Customs or other import costs for the destination country may apply.

See Payment information for more details.

Shipping

See Delivery information for more details.

Excl. VAT: 44.00€

















Camera

Image Sensor

1/2.7 inch CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio

>65 dB

Min. Illumination

0.005 Lux/F1.6, 30IRE, 0 Lux IR on

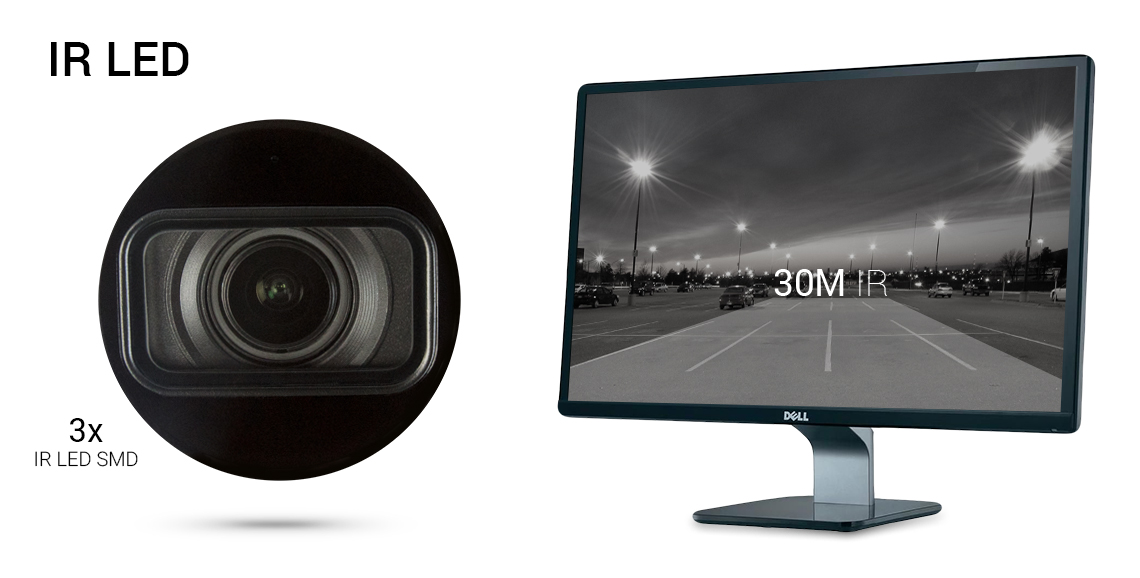

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

3

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: 132° × 111° × 58°

(diagonal × horizontal × vertical)

3.6 mm: 109° × 92° × 48°

(diagonal × horizontal × vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)

3.6 mm: 1.6 m (5.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m (208.7 ft)

25.4 m

(83.3 ft)

12.7 m

(41.7 ft)

6.4 m

(21.0ft)

3.6 mm

80 m

(262.5 ft)

32 m

(105.0 ft)

16 m

(52.5 ft)

8 m

(26.2 ft)

Video

Frame Rate

CVI:

PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;

NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps

AHD:

PAL: 4M@25 fps;

NTSC: 4M@30 fps

TVI:

PAL: 4M@25 fps;

NTSC: 4M@30 fps

CVBS:

PAL: 960H;

NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Audio Interface

One channel built-in mic (-A)

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC

Power Consumption

Max 3.7W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Plastic throughout the whole casing

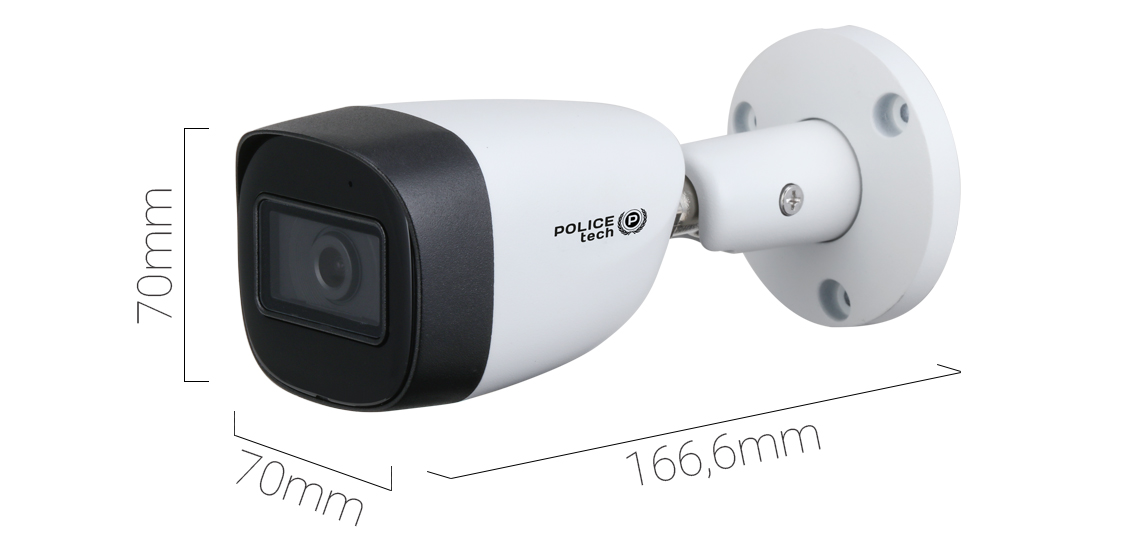

Camera Dimensions

161.3mm×69.7mm×70.0mm(6.35"×2.75"×2.75" )

Net Weight

0.19 kg (0.55 lb)

Gross Weight

0.29 kg (0.64 lb)
